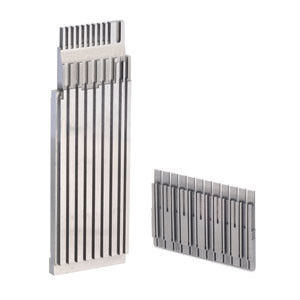

Automotive Precision Mold Parts Machining Connector 2D Or 3D Avaliable/precision mold parts

Automotive Precision Mold Parts Machining Connector 2D Or 3D Avaliable/precision mold parts

  • Automotive Precision Mold Parts Machining Connector 2D Or 3D Avaliable/precision mold parts
Automotive Precision Mold Parts Machining Connector 2D Or 3D Avaliable/precision mold parts
Product Details:
Place of Origin: Guangdong, China ( Mainland)
Brand Name: Yansong
Certification: ISO9001: 2008
Model Number: XZ222
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs is available
Price: Negotiable
Packaging Details: PE film covered first, Plastic box, then carton last.
Delivery Time: Normally, simple parts, 5-7 days, complicated parts, 7-15 days. According to QTY and the complexity of drawing.
Payment Terms: Negotiable
Supply Ability: 2000-3000 units per month
Contact Now
Detailed Product Description
Name: Non- Standard Custom Made Square Precision Machining Mold Parts Used Material: SKD11
Drawings Format: 2D Or 3D Is Avaliable Machining Technology: Grinding And EDM
Drawing Software: UG, CAD And Auto CAD And So On Tolerance: According To Drawings' Requirement
High Light:

precision mold components


precision molded products


Custom Precision Automotive Parts Square Precision Machining , Precision connector



Introduction of This Mold Part


1. Name: Non- Standard Custom Made Square Precision connector


2. Material: HPM1 is a Japanese imported material that does not need to be heat-treated, hirosawa for excellent and used in advanced grinding, especially suitable for the use of this part of the automobile mould parts.


4. Processing methods/ technologies: For this automobile mold parts, it is processed by precision grinders and electrical discharge machines.


4. Processing equipments: Plane grinder, Sodick electrical discahrge machine.


5. Detection equipment: Projector, Calliper, Japan Nikon Height gauge, Screw gauge, Hardness gauge, etc.


6. Application: It's assembled on a car mold as a components.


7. Surface treatment: For this mold part, its surface treatment is polishing. And other surface treatments can be available in our factory, such as: PCD caoting, DLC caoting and mirror polishing, etc.


8. Design software: UG, PRO/E ,CATIA, SOLIDWORK, CAD, PDF, etc.



Specification/ Information


10 years machining parts processing experience; Precision tolerance less than 0.001mm; Depends on customer’s requirements.



Shipping in 5-15 workdays after receive the payment.


Payment terms

T/T, L/C, Paypal, Western Union or negotiable


QC (inspection verywhere)

- Technicians self-check in production

- Engineer spot check in production.

- QC inspect after products finished

- International sales who were trained the technical know-how spot check before shipping to ensure the quality.



  • Grinding Precision:0.003mm
  • EDM Precision: 0.002 mm
  • Surface roughness: Ra0.3um
Parts Series: precision grinding parts, edm spare parts, wire edm parts, cnc machined parts, connector mold parts, industrial cutting knives and more customized parts.
Industry involved: Automative , Appliances, Medical Devices, Electronics and so on.


Factory Equipment


(1) Processing Machines:


  1. Precision Grinder: 30
  2. Japan  mirror EDM: 3
  3. Japan Sodick EDM machine: 8
  4. Taiwan qunji EDM:4
  5. Internal- external lapping mahine: 4
  6. Milling machine: 2
  7. Wire- EDM: 2
  8. Hgh- speed CNC engraving and milling machine : 3


(2) Testing Equipments:


  • Projector for digital measuring instrument: 4
  • Switzerland TRIMOS Height Gages: 1
  • Japan Nikon Height Gages: 3
  • Two dimension: 4
  • Hardness meter: 1
  • Micrometer: 10
