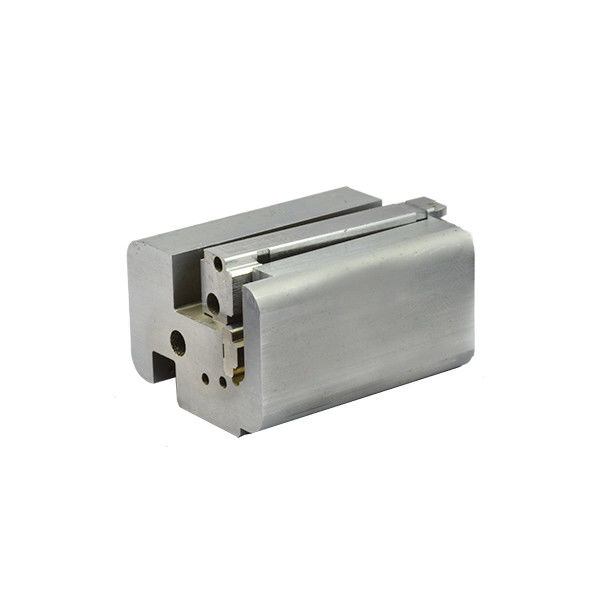

Irregular Wire Cutting And EDM Spare Parts With Discharging Accuracy 0.002 mm &sodick wire edm parts

Irregular Wire Cutting And EDM Spare Parts With Discharging Accuracy 0.002 mm &sodick wire edm parts

  • Irregular Wire Cutting And EDM Spare Parts With Discharging Accuracy 0.002 mm &sodick wire edm parts
Irregular Wire Cutting And EDM Spare Parts With Discharging Accuracy 0.002 mm &sodick wire edm parts
Product Details:
Place of Origin: Dongguan China
Brand Name: Yansong
Certification: ISO9001: 2008
Model Number: PM074
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs or as your request.
Price: Negotiable
Packaging Details: 1500-2000 units per month
Delivery Time: Normally, simple parts, 5- 7 days, complicated parts, 7-15 days. According to QTY and the complexity of drawing.
Payment Terms: T/T 50% as deposit 50% before shipment
Supply Ability: 2000-3000pcs per month
Contact Now
Detailed Product Description
Drawings Format: Pdf/.dwg/.igs./.stp/x_t. Etc EDM Accuracy:: Reach 0.002mm In Our Factory
Drawings Software: 2D Or 3D Is Ok Key Processed: Grinding And EDM Processing
Tolerance: +-0.005 Mm Application: Automotive, Medical, Aviation, Electronic Equipment
High Light:

edm wear parts


edm accessories

he EDM Spare Parts Introduction


Irregular Wire Cutting And EDM Spare Parts With Discharging Accuracy 0.002 mm


Material Available Stainless steel is used

Grinding/ Japan mitsubishi mirror EDM/ Wire Cutting


Surface Treatment:

pVD coating
DLC coating, etc, but for this mold parts, it only deals with grinding.



+-0.005 mm


Mold Precision

Accuracy of grinding:0.001 mm
Accuracy of EDM: 0.002 mm
Surface roughness: Ra0.4 um
Verticality: 0.002 mm
The above is our conventional accuracy of the mold parts , Exact precision requirements have to be determined according to customer's drawings.



Our products can be used in automotive, medical, aviation, electronic equipment and other fields


Quality Control

ISO9001:2008 certificated, each product, each process must be strictly checked by our experienced staff.


Drawing Format PDF/ DWG/ IGS/ STP.

Over 11 years professional manufacturing


Our Advantage

Superior in quality,reasonable in price and deliver on time



1, PE film covered first.
2, Plastic box.
3, Then carton last.
4, Deliver out by DHL, FEDEX etc.
Or according to customers' requirement.


Lead time

Normally 5~15 days, but some of them depend on the quantites


Term of Payment

T/T, 50% as deposit 50% before shipment



Our Advantages


a. Competitive in Price

As a manufacturer, we are looking for long-term business partners. Therefore we can provide very competitive market price


b. Quality in Material

We have stable raw marterial supporting us, to provide variable types and qualified materials into production.
Such as SKD-11,SKH-51,Tungten carbide,ASP-23,ASP-60etc., are our regular materials in stock.

c. Precision in Size

How precision we can do in size is can meet MISUMI standard.


d. Fast in Delivery

Because of well-organized management in Surpass, usually it only takes 15 days to delivery finished goods to customer.


e. Warranty in usage

We hope customer won’t worry the lifespan of our parts, warranty is guaranted with every parts accordingly after shipped.


Material & Industry info


Material name Hardness (HRC) Features Function Heat treatment
SKD-11 58~60HRC High wear-resisting and purity,have good hardenability and machinability. Widely used in metal stamping mould parts. 200℃
SKH-51(HSS) Above 63 HRC Very sharpe,a kind of alloy steel have complicated elements, which included tungsten/molybdenum/chromium/vanadium and cobalt carbide forming elements etc., Used in various of cutting tools / cold-punching mould and / embossing die / Punch head etc., 860~880℃
DC53 62~63HRC Good hardenability and machinability. Used in stamping mould/punch head 520~530℃
CK45 55HRC High quality carbon structural steel, hardness is not high but easy for machining. widely used as a tip, guide pin, etc., but must have heat treatment. 100℃
42CrMo4 Above 55HRC High strength, hardenability and good toughness.Easy for polishing, and can have electroplating. Widely used in plastic injection mould parts. 860℃
Tungten carbide 90-94HRC Have high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance and a series of excellent performance. Widely used in metal stamping mould parts, such as punch head. 1000℃
