Mobile / Auto Connector Mold Parts SAARS / Daido Material ISO9001 2008 Certification/die casting parts

Mobile / Auto Connector Mold Parts SAARS / Daido Material ISO9001 2008 Certification/die casting parts
Mobile / Auto Connector Mold Parts SAARS / Daido Material ISO9001 2008 Certification/die casting parts

Large Image :  Mobile / Auto Connector Mold Parts SAARS / Daido Material ISO9001 2008 Certification/die casting parts

Product Details:

Place of Origin: China
Brand Name: Xiangzhan
Certification: ISO9001 2008
Model Number: PM018

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiable
Packaging Details: Anti-rust oil, PE film covered first, Plastic box, then carton.
Delivery Time: Normally, simple parts, 5-7 days, complicated parts, 7-15 days. According to QTY and the complexity of drawing.
Payment Terms: T/T, Western Union
Supply Ability: 1500-2000 units per month
Detailed Product Description
Common Material: SKD11, SKD61,S-7,1.2344,2379,8407, Etc. Material Brand: ASSAB, SAARS, Daido, Hitachi And Bohler Etc.
Application: Computer/Mobile/Auto Connector Mold Material Origin: America, Japan, Germany, Etc
Product Name: Connector Mold Parts Sample: Free Sample Is Ok
Product: Household Appliance Product Name: Tablet Press Mould
High Light:

standard mould parts

,

mold spare parts

Product Information



roduct Description

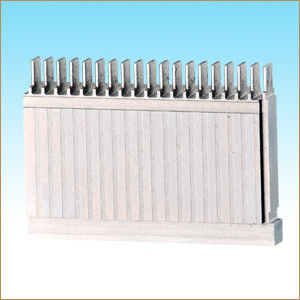

These components are used as a mold for pin connectors.



High Volume Tooling Capabilities Applied/Processes



Mold components were manufactured by Xiangzhan utilizing Surface grinding, EDM, Wire EDM, CNC Graphite Milling. Parts are polished to meet final molded insert surface finish requirements.



Overall Part Dimensions



Length: 1.129"
Width: 0.0990" + 0.0000/- 0.0002
Height: 1.5708"



Tightest Tolerances



+ 0.0000"/- 0.0002"



Material Used



S-7 Rc 54-56



Material Finish



EDM matt finish & fine surface finish as required.



In process testing



Parts are inspected to print specifications and packaged for inventory or shipment to the customer



Industry for Use



Electronic Component Industry



Standards Met



Customer supplied print, 2D CAD Drawing



Delivery/Turnaround Time



We Deliver Urgent Parts in 24 Hours Depending on the Complexity of the Drawing





Xiangzhan Precision mold Mainly produces precision stamping dies molds and parts .

we can do 0.001 mm minimum tolerance Ra 0.005 minimum polished and cutting wires lowest possible Ra0.035 .Cut the minimum line width is 0.13.

parts are widely used in Automobile: auto connector mold parts

Medical: medical equipment connector mold parts
Electrical: computer connector mold parts, mobile connector mold parts and so on.



Quality control In Xiangzhan
Good experience and technology in manufacturing mold parts, some engineers have more than 11 years experience in producing various kinds of precision parts, so could offer good technology support to customers
Advanced measurement equipment to make sure all the requirement from our customers will be measurable.100% inspection before shipment.

:(1). Incoming material inspection

(2). Inspection of work-in-progress

(3). Finished product inspection

All of our operations are strictly compliant with ISO 9001: 2008 guidelines

We own CNC machining, 2.5D projector, various height Gage and other testing equipment.



More Advantages Are Below

Price:
Competitive factory price with good quality.

Service:
Short lead time , 5-15 working days according your quantity
100% on time delivery to our dear customers
Low MOQ , 1 pcs is available
Near Shenzhen, its convenient for transportation.
OEM is available and welcome



                 If you have any questions, you can contact us anytime.
